Silicon Drift Detectors
KETEK’s Silicon Drift Detectors (SDD) are the state-of-the-art X-ray sensors for the energy range between 0.05 keV and 30 keV.
They are globally used in manifold applications in electron microscopes, XRF benchtop and XRF handheld spectrometers as well as in material sorting systems for mining and recycling. Due to their wide operating temperature range, their excellent energy resolution, and high reliability they are particularly suited for industrial applications.
VITUS H20 SLF
Stray-Line-Free SDD
30 mm² collimated to 20 mm² X-ray Silicon Drift Detector for XRF – EDX – TXRF Applications
Unique Features
- Elemination of nearly all unwanted X-ray fluorescence (stray lines) from internal SDD components
- Extremely low detection limits in the ppb regime
- Perfect for applications like RoHS, REACH, Pharma, semiconductor industry and many more…
- Superior radiation hardness up to a total dose of 1013 incoming low energy photons
- Both Graphene window types available
- Vacuum encapsulation for operation in Helium atmosphere
- Available for the entire KETEK electronics family
Available Options
CH Window
1 µm Carbon, replacing 8 µm or 12.5 µm Beryllium
Vacuum encapsulated for many years of stable operation
No window fluorescence lines (pure Carbon)
Specifications
| First amplification stage | KETEK CSA |
| Energy resolution (@ Mn Kα, -35 °C chip temperature and 1 µs peaking time) | ≤ 129 eV |
| Peak to background | > 15,000 |
| Peak to tail | > 2,000 |
| Optimal peaking time at max. cooling | 1 µs |
| Absorption depth | 450 µm Si |
| Peak shift stability up to 100 kcps | < 1 eV |
| Max. input countrate | 4,000 kcps |
| Window | 1 µm Carbon |
| Cooling performance at +20 °C heat sink temperature |
∆T > 95 K |
| On-chip collimator | multilayer |
Spectrum

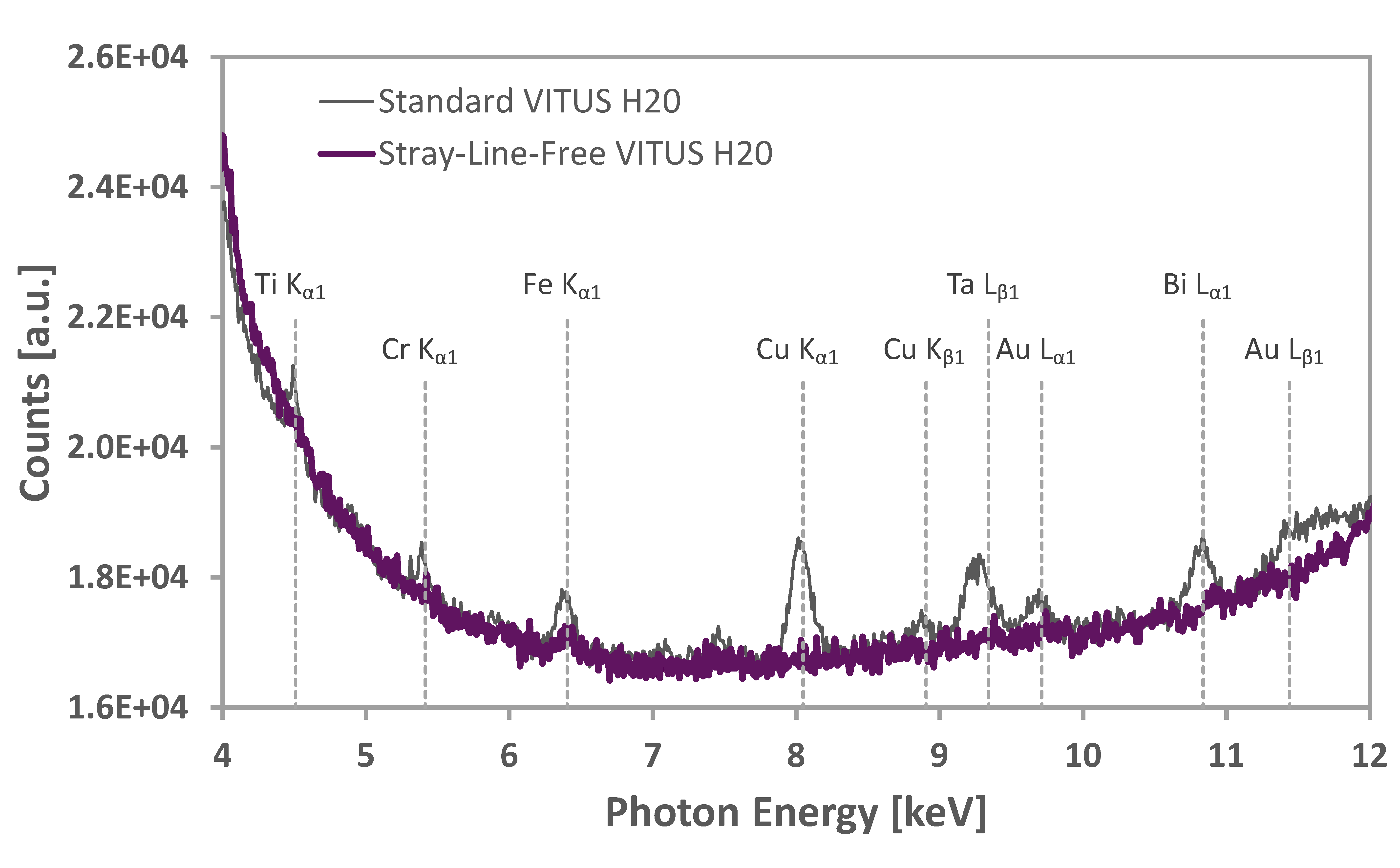

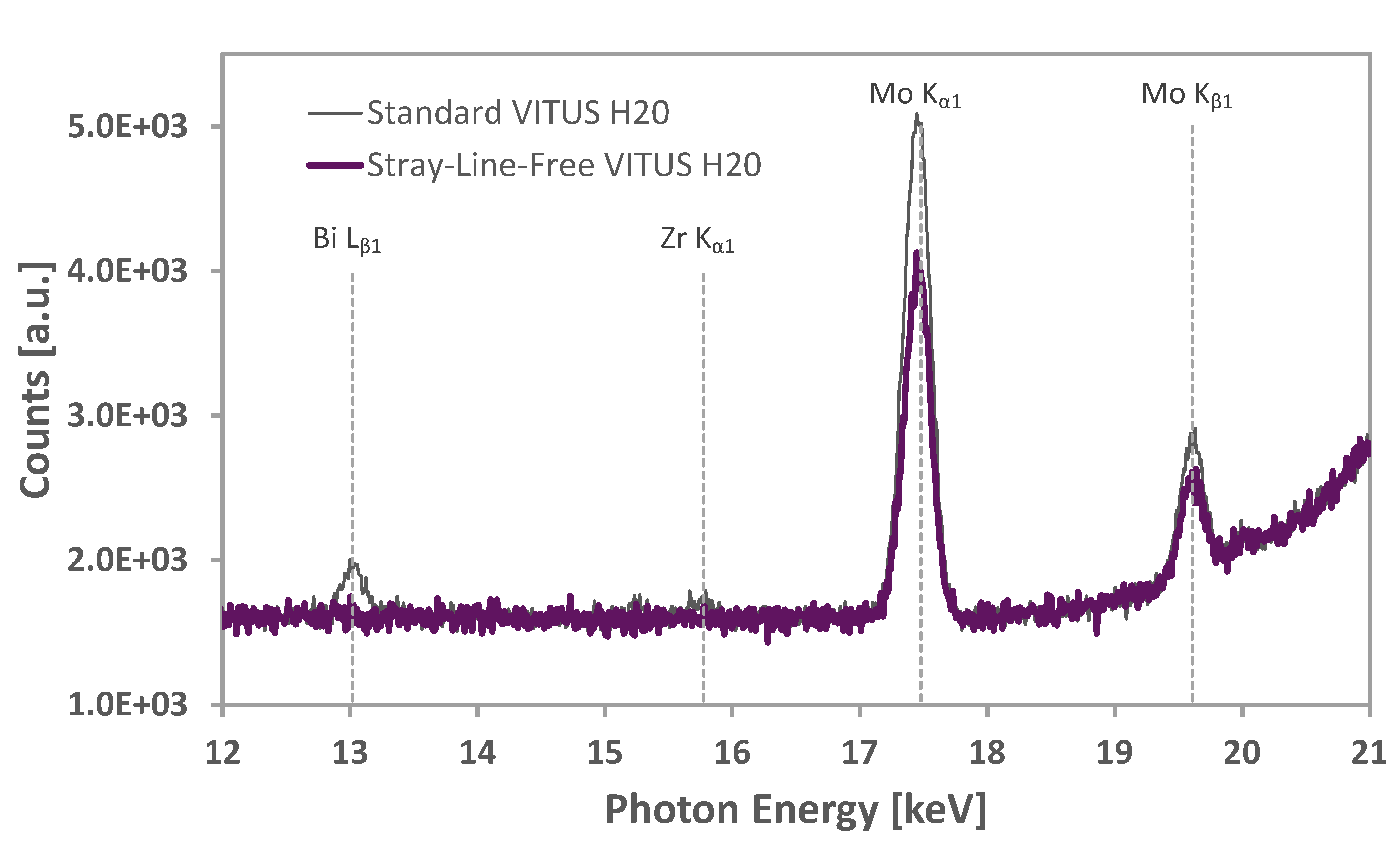

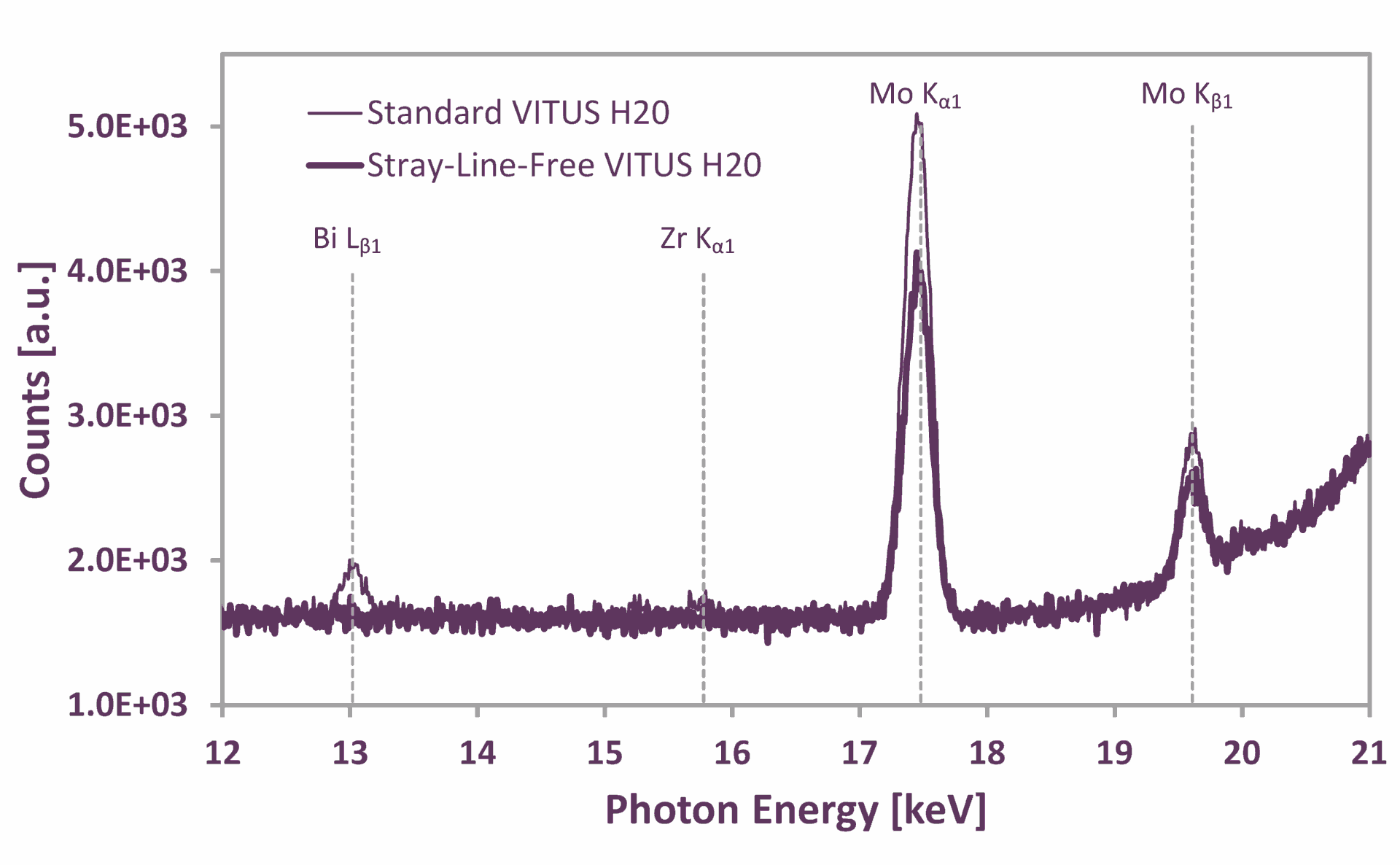

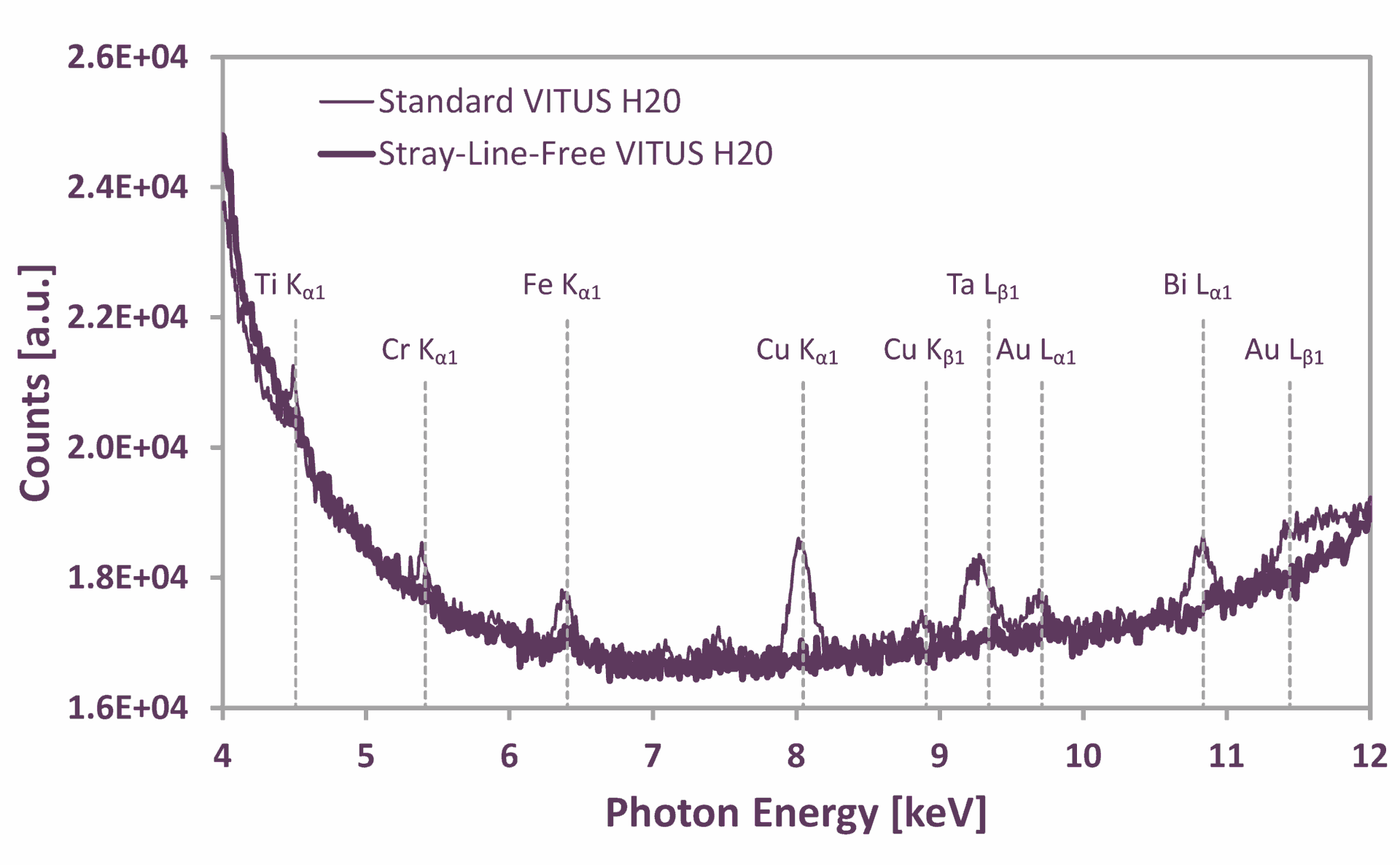

The spectrum has been acquired by KETEK with a X-Ray source with a measurement time of many hours.
Most stray-lines compared to the standard VITUS SDD are completely eliminated or drastically suppressed.
Energy Resolution

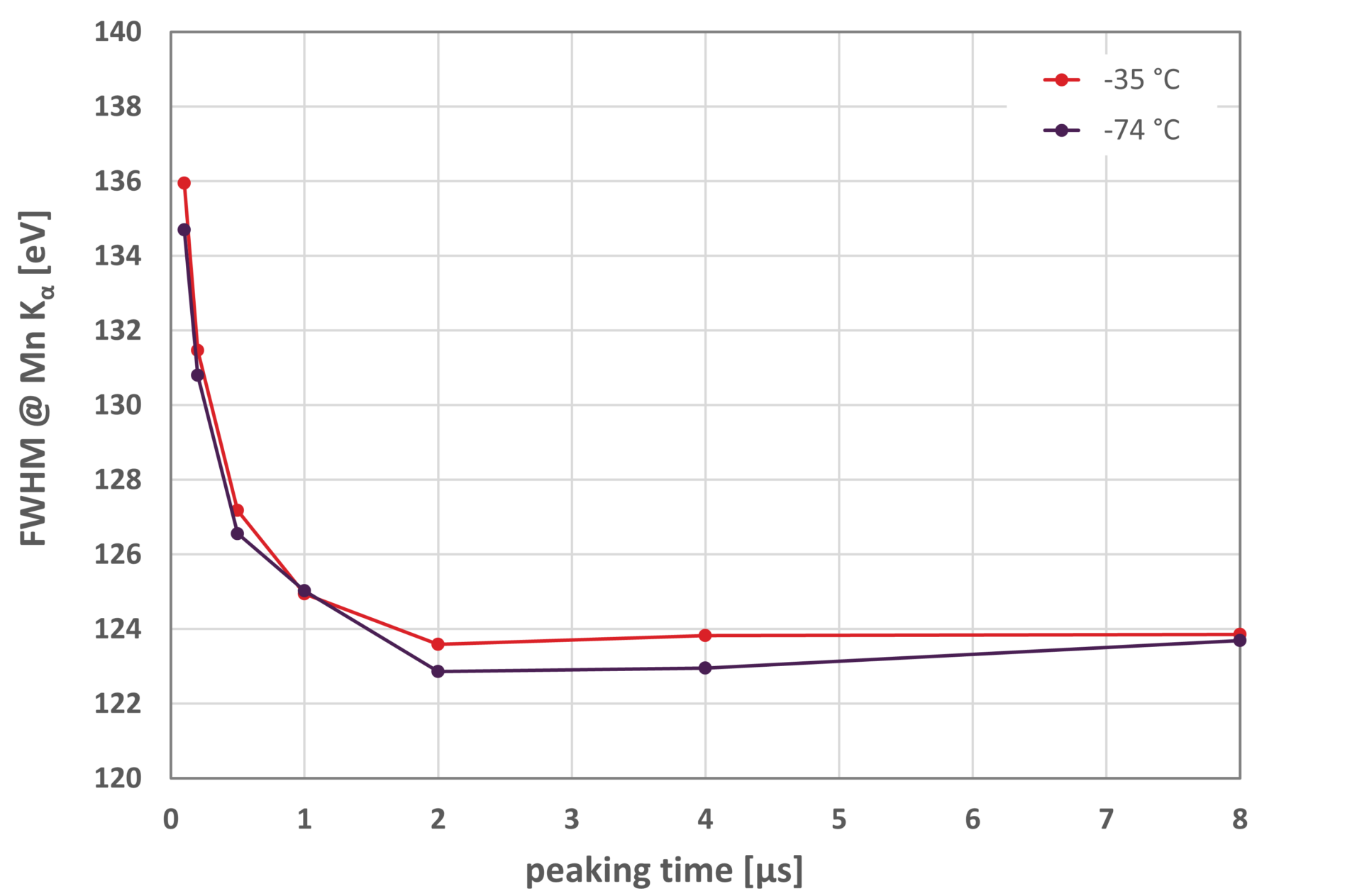

Energy resolution (Mn Kα) values for peaking times from 0.1 µs through 8 µs showing good FWHM values even for higher operating temperatures. Depending on the application the best performance can be achieved by an appropriate selection of peaking time and set operating temperature.
Cooling Performance
NEW SDD COOLING TECHNOLOGY
- -60 °C SDD chip temperature achievable even at +65 °C heat sink temperature
- Drastically increased efficiency of the thermoelectric cooling (e.g. 250 mW at -35 °C sensor temperature)
- Ultra stable vacuum integrity for typically more than 10 years of operation
Operation Requirements
SDD Voltages and Currents
| Ring1 (R1) | -20 V ± 10 V | 10 µA typ. |
| RingX (RX) | -130 V ± 30 V | 10 µA typ. |
| Back | -80 V ± 20 V | < 1 nA |
| Peltier Element | 5,5 V | 600 mA max. |
General Parameters
| Temperature Monitor | NTC thermistor | 10 kΩ @ 25 °C |
| Output signal | ramped reset type | – |
CSA Parameter
| VI/O | 3.3 V ± 0.1 V | < 1 mA |
| Vs | 2 V ± 0.1 V | < 1 mA |
| Vsss | -5 V ± 0.1 V | < 1 mA |
| Output gain | 1.6 mV/keV ± 20 % | – |
Pin Assignment
Geometry
Overview VITUS SDD Series
KETEK offers a broad range of high performance Silicon Drift Detectors (SDD) for energy dispersive X-ray spectroscopy. From mature off-the-shelf systems to innovative customized solutions, KETEK provides the right X-ray sensor for your needs across the spectrum of scientific and industrial applications. The VITUS SDD series combined with KETEK’s complete electronics including the pulse processing is a fast and efficient acquisition solution of highest quality.
