VIAMP
The VIAMP preamplifier modules are specially designed printed circuit boards for operation with KETEK’s VITUS Silicon Drift Detectors (SDD). The assembly comprises an ultra-low noise, ramped reset type electronic preamplifier of positive polarity with onboard settings and filtering for all necessary SDD bias voltages.
Depending on the size and application of the SDD module, three standard Aluminum housing options are available for the electronic boards, which provide appropriate protection and serve as a sufficient heat sink.

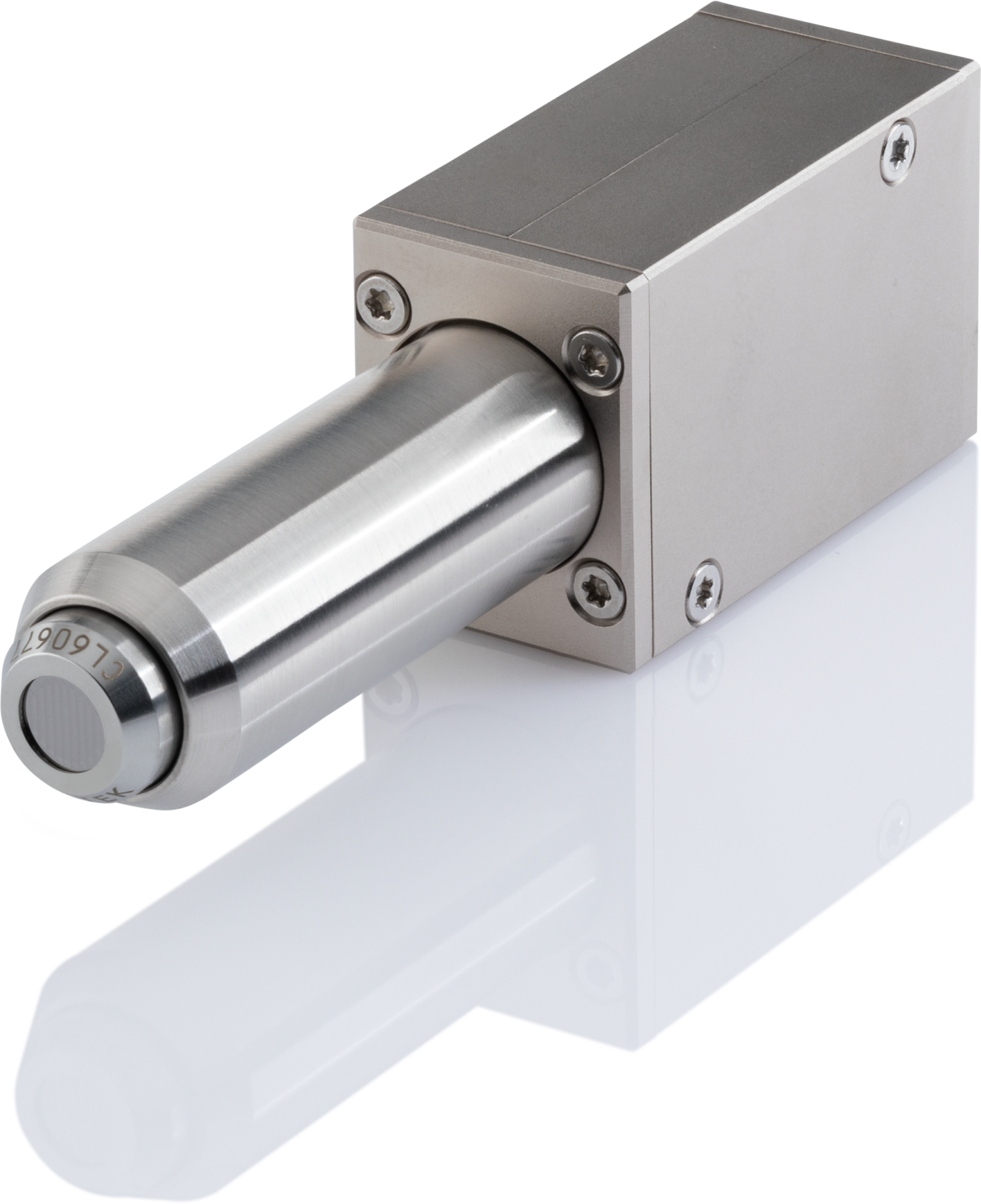

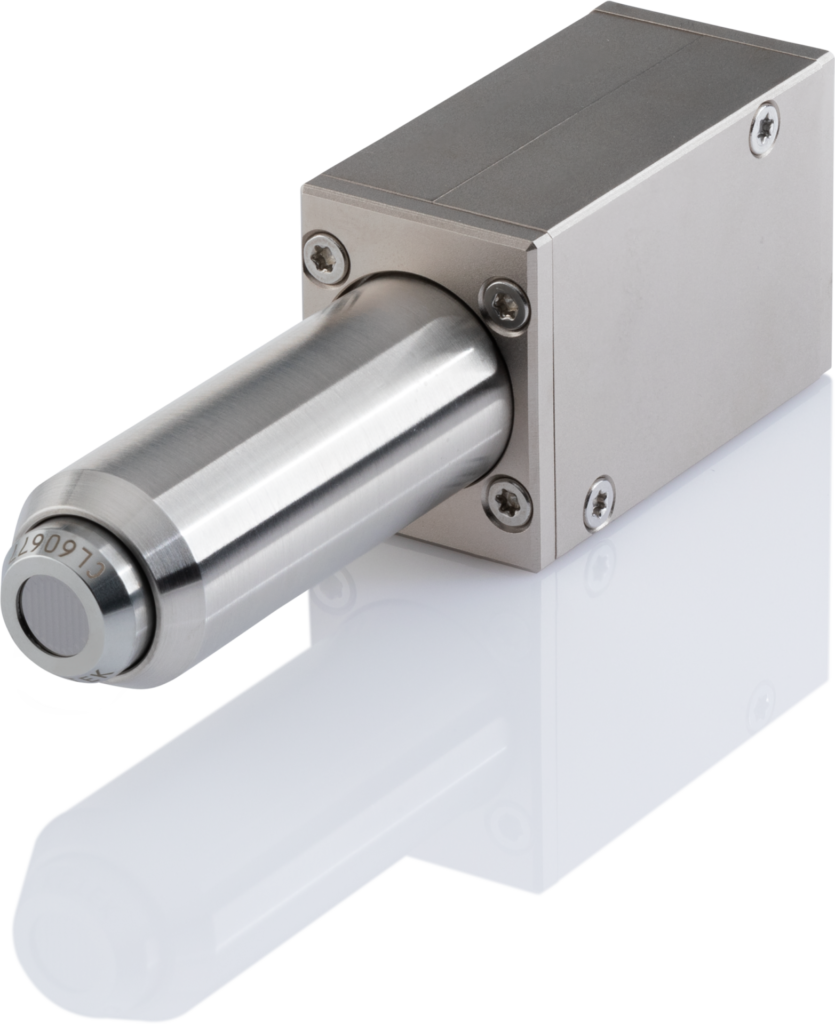

VIAMP-KP 3.0
The VIAMP-KP 3.0 housing has been specially designed with a vacuum-tight finger construction to fit a wide variety of vacuum applications.
Unique Features
- New form factor for vacuum applications like benchtop SEMs
- Designed for VITUS modules H7 to H50
- Both Graphene window types aviable
- 50 mm stainless steel finger with an optimized heat sink connection
- Housing dimensions:
51 x 25 x 32 mm³ - Optimized for operation with VICO-DV 3.0

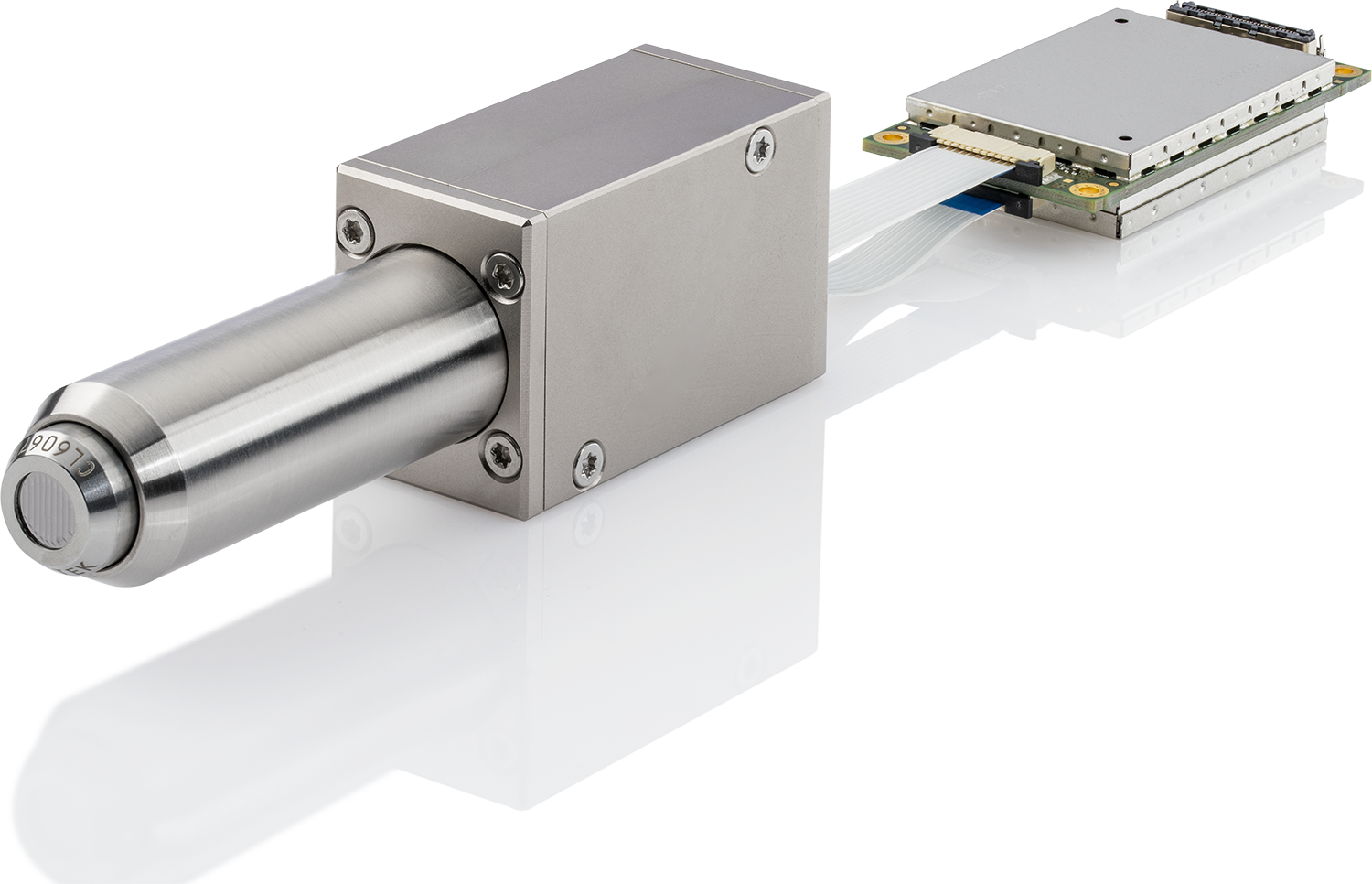

VIAMP-KP 3.0 with a VITUS H20 CL module, front view

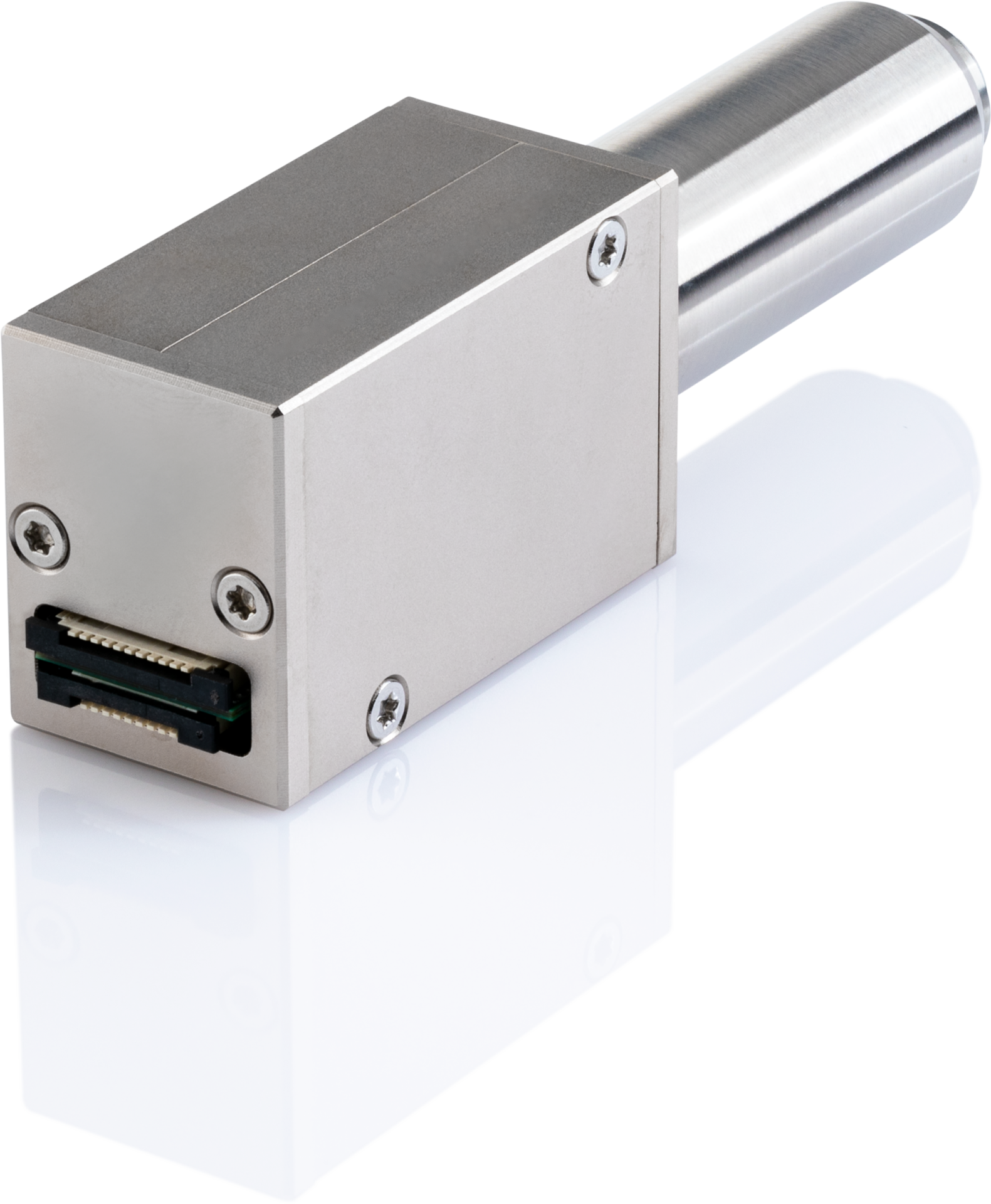

VIAMP-KP 3.0 with a VITUS H20 CL module, back view
VIAMP-KP 3.0 with VICO-DV 3.0 complete electronics board with DPP 3.0
Specifications
| First amplification stage | KETEK CSA |
| Energy resolution (@ Mn-Kα, -35 °C chip temperature and 1 µs peaking time) | ≤ 133 eV |
| Peak to background | > 15,000 |
| Peak to tail | > 2,000 |
| Peak shift stability up to 100 kcps | < 1 eV |
| Max. input countrate | 2,000 kcps |
| Graphene CH window
Graphene CL window |
1 μm Carbon
165 nm Carbon |
| Cooling performance at +20 °C heat sink temperature |
∆T > 85 K |
Spectrum

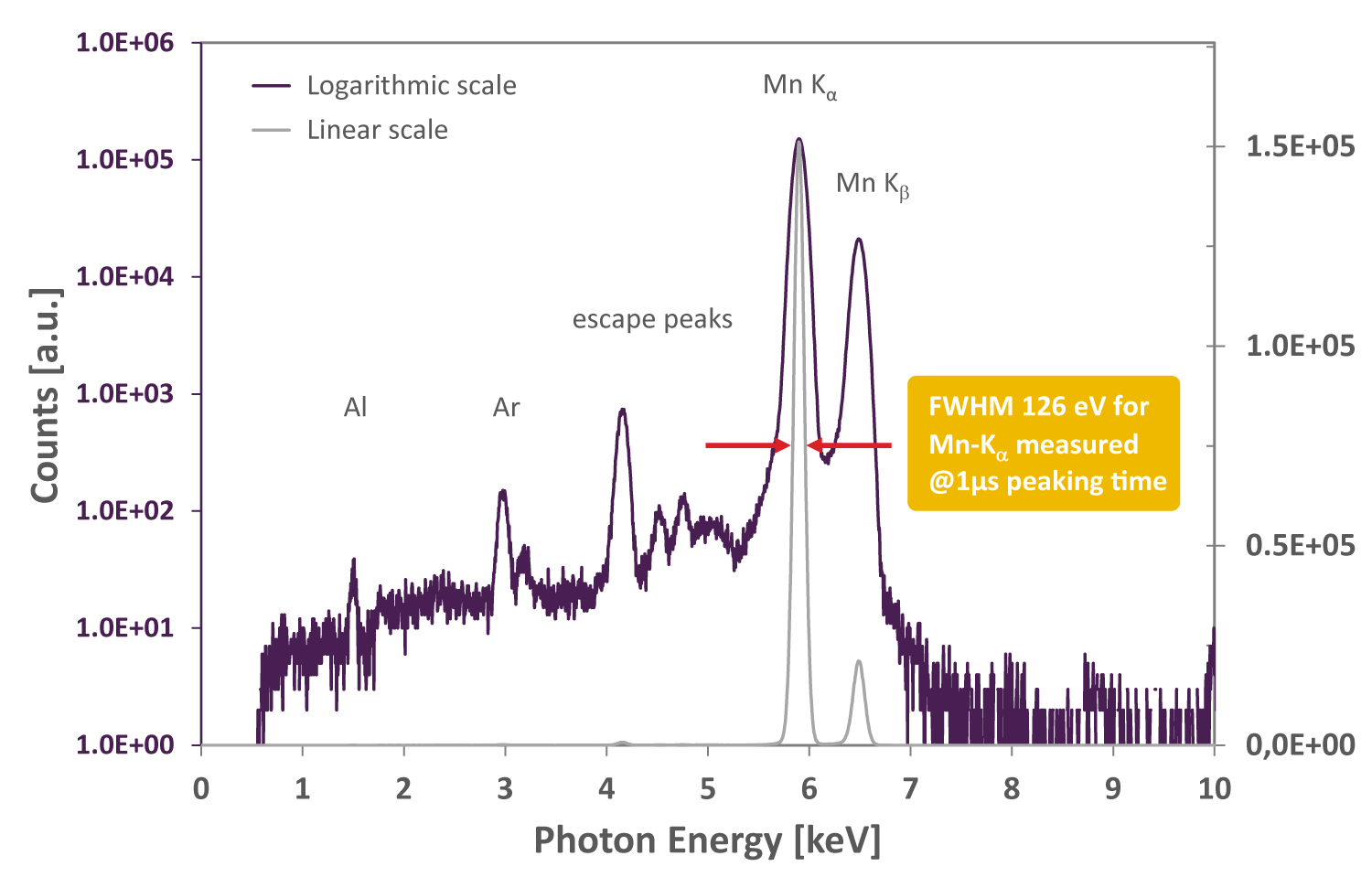

The spectrum has been acquired in KETEK’s standard end qualification test stand with an Fe-55 source. The input count rate has been 50 kcps at a peaking time of 1 μs and a SDD chip temperature of -35 °C. The spectrum shows an excellent peak-to-background ratio and energy resolution for Mn-Kα.
Energy Resolution
This plot shows the energy resolution for Mn-Kα measured with a VIAMP-KP 3.0 and KETEK DPP3 at different peaking times from 25 ns to 8 μs at a SDD chip temperature of -35 °C. The best set of parameters depend on the application optimizing either the energy resolution or the achievable through put.
Operating Parameters
| Parameter | Typical | Maximum Ratings |
| Positive Power Supply DC | +5 V 18 mA |
+4.9 V to +5.4 V 22 mA max |
| Negative Power Supply DC | -5 V 8 mA |
-5.4 V to -4.9 V 12 mA max |
| Output Signal | Positive Ramp | |
| Output Amplitude | ±0.975 V | ±0.95 Vpp,min ±1.0 Vpp,max |
| Output Gain* | 5 mV/keV | ±20 % |
| Gain Stability | < 20 ppm/°C | |
| External Reset (VICO-DV 3.0) | 0 V or + 3.3 V | |
| HV Supply DC | -168 V ≈ 125 µA |
±5 V 200 µA max |
| TEC Supply DC | 157 mA / 1.58 V @ -35 °C | 500 mA / 7 V |
| TEC ΔT | > 85 K @ +20 °C heat sink temp. | |
| Temp. Sensor | 10 kΩ Thermistor @ +25 °C | ≤ 1 μA |
| * other gain on request |

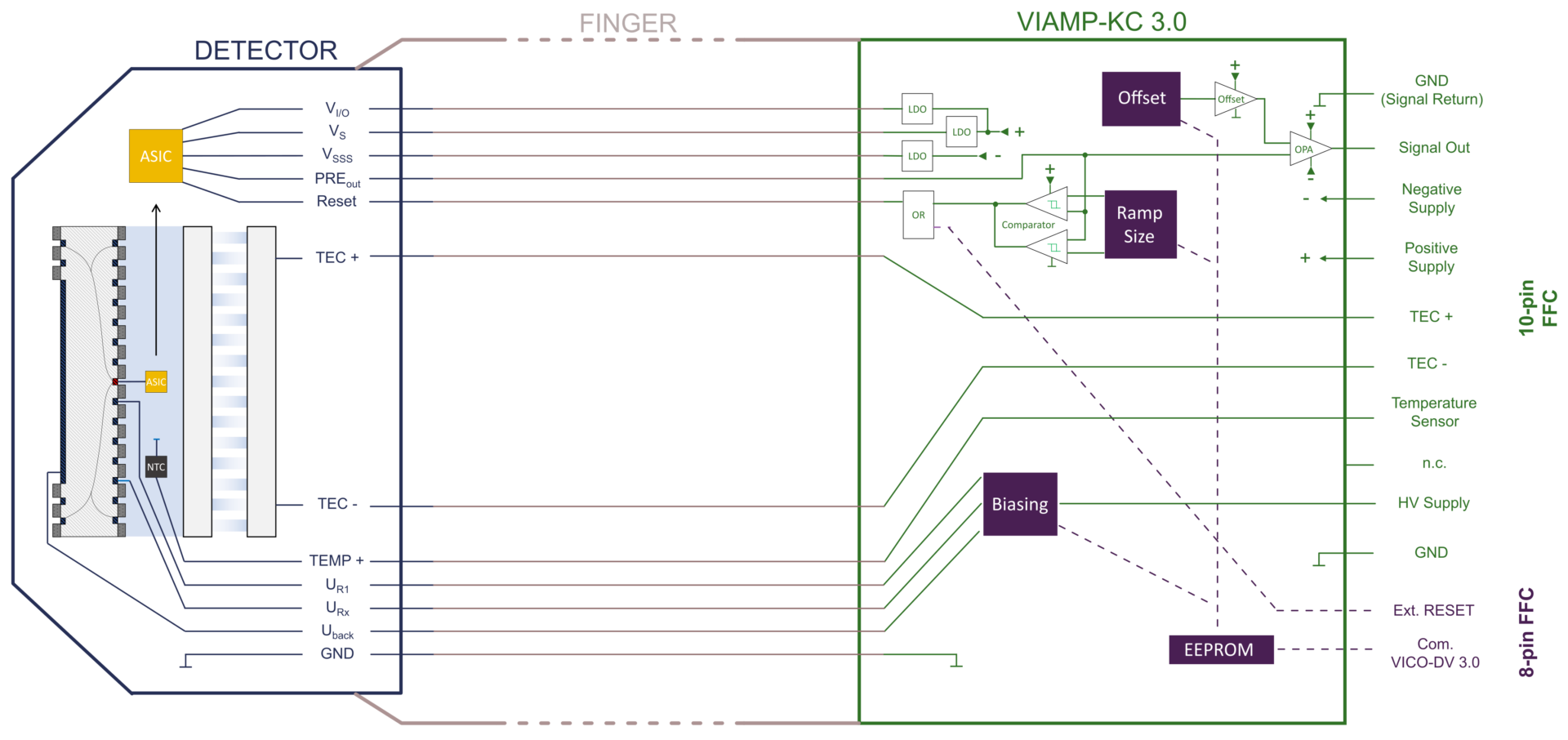

Operation Block Diagram
FFC connection
8-Pin FFC
VIAMP communication with VICO-DV 3.0 supply electronics
FFC Cable Length
The flat flexible cable is available in 50 mm, 100 mm and 200 mm length.
Pin Assignment 10-Pin FFC
| Pin 1 | TEC Return |
| Pin 2 | TEC Supply |
| Pin 3 | Positive Supply |
| Pin 4 | Negative Supply |
| Pin 5 | GND (Signal Return) |
| Pin 6 | Signal Out |
| Pin 7 | Temperature Sensor |
| Pin 8 | GND |
| Pin 9 | Not Connected |
| Pin 10 | HV Supply |

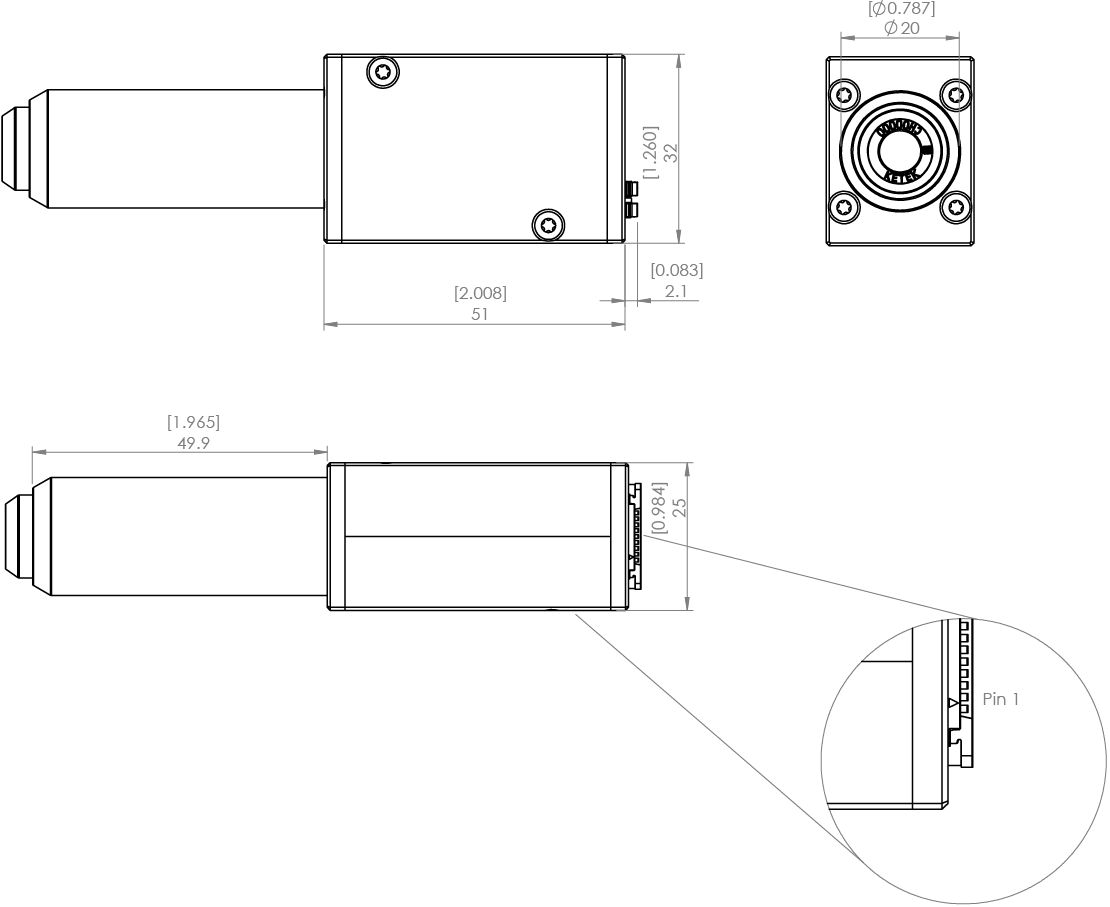

Geometry
Grounding and Thermal Scheme
The VIAMP needs to be mounted using a gap pad which is electrically isolated but thermally conductive, as the VIAMP housing functions as heat sink.
Temperature Read-out
The temperature of the SDD chip is determined by a thermistor with a resistance-temperature correlation according to the following equation:
